Custom vs. Standard Spline Shafts: What Do You Need?

Spline shafts are crucial components in power transmission systems, offering smooth torque delivery, precise alignment, and improved durability. When it comes to choosing between standard spline shafts and custom-made ones, engineers often face a crucial decision: How do you know when a custom solution is worth the investment?

When Are Standard Spline Shafts Good Enough?

Standard spline shafts are ideal for well-defined specifications and loads. If machinery follows widely used standard dimensions, all standard varieties of spline shafts, whether they are involute, straight-sided, or serrated splines, are usually cost-effective and readily available.

They work best in systems where torque capacity, alignment, and shaft geometry don't need special optimization. Often in applications requiring light to medium-duty power transmission, a standard spline shaft delivers dependable performance without the need for customization.

When is a Custom Spline Shaft Required?

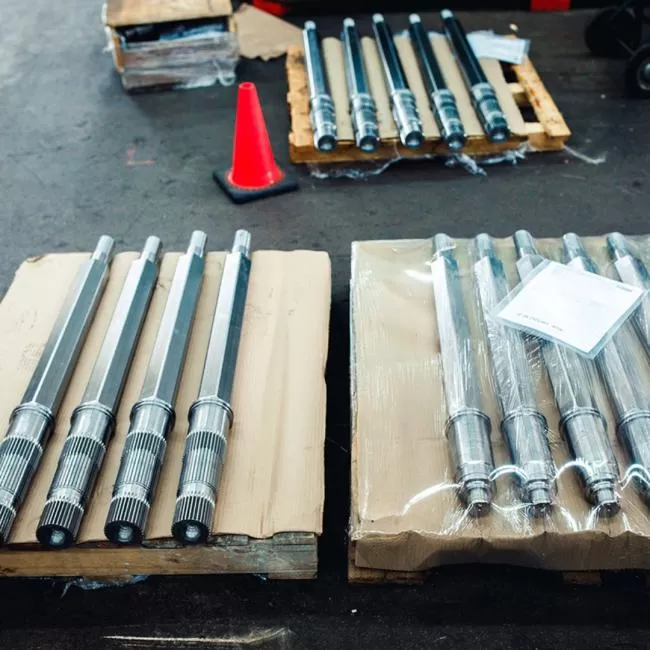

Custom spline shafts come in when performance, precision, or environmental demands exceed what standard ones can handle. A custom solution would be necessary in cases of:

• High torque loads that require enhanced strength or unique spline geometry
• Non-standard shaft dimensions and tooth profiles.
• Precise control, such as robotics or aerospace applications
• Harsh environments, including high vibration, extreme temperatures, or corrosive conditions
• Tight tolerances

In these cases, a custom-manufactured spline shaft provides scope for greater accuracy, efficiency, and longevity, especially when designed with advanced CNC machining and precision grinding.

What Are the Benefits of Working With a Specialized Spline Manufacturer?

Experienced manufacturers like True Gear & Spline Ltd. ensure that every shaft meets exact engineering requirements. Custom spline shafts can be tailored using premium alloys, heat treatments, tight tolerances, and specialized geometries to match your equipment’s unique load profile. This results in:

• Improved torque transmission
• Reduced wear
• Better alignment and operation
• Reduced maintenance and downtime

Why Choose True Gear & Spline Ltd.?

True Gear & Spline Ltd. specializes in high-precision spline shafts for industries across North America. Engineered with advanced CNC machining, gear grinding, and rigorous quality control, we deliver components that meet the highest standards of accuracy and performance. Whether your application requires standard or fully custom spline shafts, our team ensures you receive exactly what you need.

FAQs

What is the difference between a standard spline shaft and a custom spline shaft?

A standard spline shaft follows common industry dimensions and works well for general power transmission needs. A custom spline shaft is engineered for special torque loads, unique dimensions, tight tolerances, or demanding environments.

When should I consider using a custom spline shaft for my machinery?

You should choose a custom spline shaft when your application requires higher precision, unique geometries, enhanced durability, or reliable performance in extreme conditions such as high vibration, heat, or corrosive environments.

Where can I source the best custom spline shafts from in Ontario?

True Gear & Spline Ltd. in Cambridge, Ontario, manufactures custom spline shafts using cutting-edge tools and equipment. Established in 1966, we have almost 60 years of experience in gear and spline shaft manufacturing. Call 519-653-1301 to get a free quote.
